SLU AEI Site

RF Signal Flow

Figure E.1: Single Track SLU Equipment

RF ON Commands

The table below demonstrates how to turn RF on at an SLU site:

Antenna	Parameters	Command
Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Antenna 1	RFON, Reader #, Antenna #	RFON, 0, 1
Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 0, *

Press any key to turn RF off.

SLR AEI Site

RF Signal Flow

Figure E.2: Single Track SLR Equipment

RF ON Commands

The table below demonstrates how to turn RF on at an SLR site:

Antenna	Parameters	Command
Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Antenna 1	RFON, Reader #, Antenna #	RFON, 0, 1
Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 0, *

Press any key to turn RF off.

SHU AEI Site

RF Signal Flow

Figure E.3: Single Track SHU Equipment

RF ON Commands

The table below demonstrates how to turn RF on at an SHU site:

Reader	Antenna	Parameters	Command
Reader 0	Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Reader 1	Antenna 1	RFON, Reader #, Antenna #	RFON, 1, 1
Reader 0	Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 0, *
Reader 1	Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 1, *

Press any key to turn RF off.

DLR AEI Sites

RF Signal Flow

Figure E.4: Near Track Equipment

Figure E.5: Figure Far Track Equipment

Notes:

1. Near track APU (#1) should be left hand unit on bungalow.

2. Near track is track closest to bungalow.

RF ON Commands Near & Far Tracks (APU #1 for Near and APU #2 for Far)

The table below demonstrates how to turn RF on at an DLR site:

Antenna	Parameters	Command
Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Antenna 1	RFON, Reader #, Antenna #	RFON, 0, 1
Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 0, *

Press any key to turn RF off.

DMR and DHR AEI Sites

RF Signal Flow


Figure E.6: Near Track Equipment	Figure E.7: Figure Far Track Equipment

Notes:

1. Near track APU (#1) should be left hand unit on bungalow.

2. Near track is track closest to bungalow.

RF ON Commands Near & Far Tracks (APU #1 for Near and APU #2 for Far)

The table below demonstrates how to turn RF on at DMR and DHR sites:

Reader	Antenna	Parameters	Command
Reader 0	Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Reader 1	Antenna 1	RFON, Reader #, Antenna #	RFON, 1, 1
Reader 0	Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 0, *
Reader 1	Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 1, *

Press any key to turn RF off.

SMR and SHR AEI Sites

RF Signal Flow

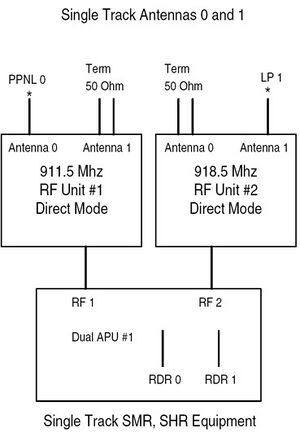

Figure E.8: Single Track SMR, SHR Equipment

RF ON Commands

The table below demonstrates how to turn RF on at SMR and SHR sites:

Antenna	Parameters	Command
Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Antenna 1	RFON, Reader #, Antenna #	RFON, 1, 1

Press any key to turn RF off.

DHU AEI Sites

RF Signal Flow


Figure E.9: Near Track Equipment	Figure E.10: Figure Far Track Equipment

Notes:

1. Near track APU (#1) should be left hand unit on bungalow.

2. Near track is track closest to bungalow.

RF ON Commands Near & Far Tracks (APU #1 for Near and APU #2 for Far)

The table below demonstrates how to turn RF on at a DHU site:

Reader	Antenna	Parameters	Command
Reader 0	Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Reader 1	Antenna 1	RFON, Reader #, Antenna #	RFON, 1, 1
Reader 0	Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 0, *
Reader 1	Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 1, *

Press any key to turn RF off.

DLU AEI Sites

RF Signal Flow


Figure E.11: Near Track Equipment	Figure E.12: Figure Far Track Equipment

Notes:

1. Near track APU (#1) should be left hand unit on bungalow.

2. Near track is track closest to bungalow.

RF ON Commands Near & Far Tracks (APU #1 for Near and APU #2 for Far)

The table below demonstrates how to turn RF on at a DLU site:

Antenna	Parameters	Command
Antenna 0	RFON, Reader #, Antenna #	RFON, 0, 0
Antenna 1	RFON, Reader #, Antenna #	RFON, 0, 1
Antennas 0 & 1	RFON, Reader #, Asterisk for both	RFON, 0, *

Press any key to turn RF off.
